Short Description:

Cast Iron Pipe conforming to DIN/EN877/ISO6594

Material: Cast Iron with flake graphite

Qualilty: GJL-150 according to EN1561

Coating: SML,KML,BML,TML

Size: DN40-DN300


Product Detail

Product Tags

Product Description

The gray cast iron soil pipes produced by centrifugal technology which are used in drainage sewer system and ventilation ducts system through a flexible linkage.

Which have following advantages: flat straight, even pipe wall. high strength and density,high smoothness internal and external surface, no casting defect, easy installation, easy maintain, long using life, environmental protecting, fireproofing and no noise.

Product Display

15 degree elbow

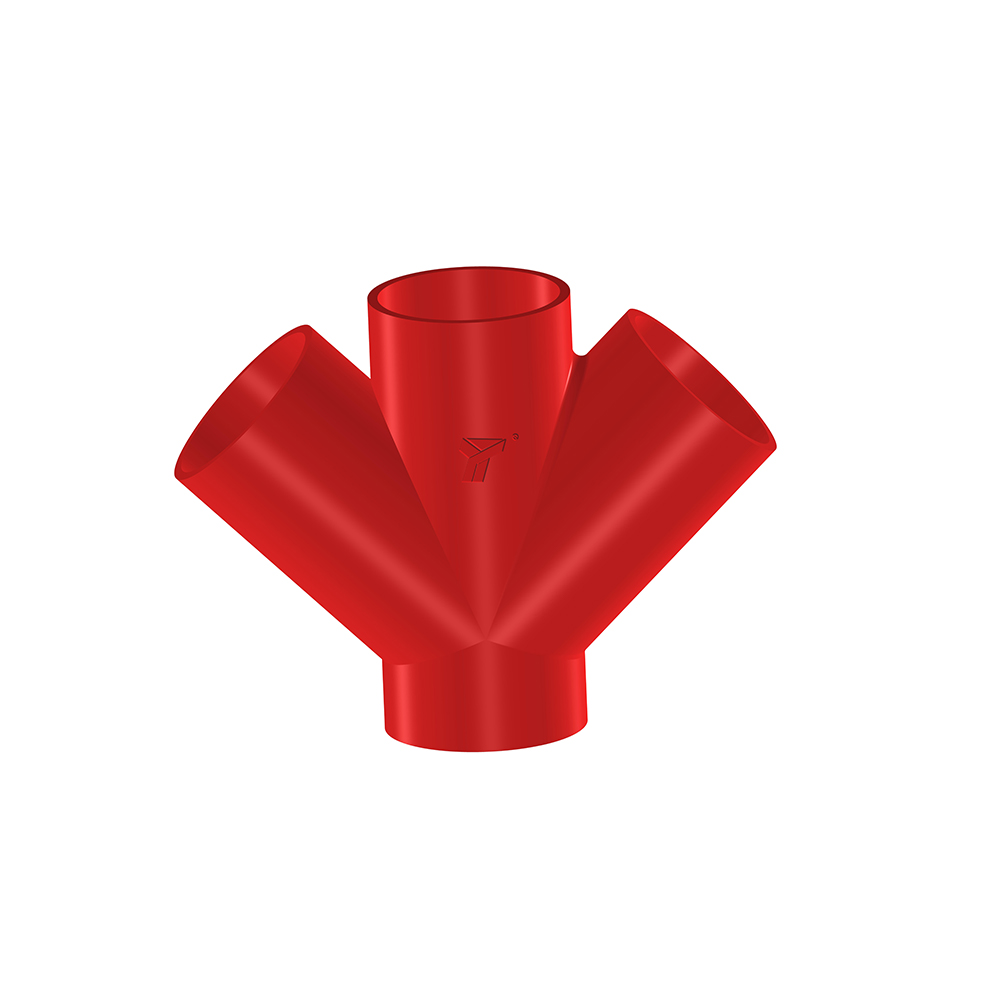

Oblique cross
Cast Iron Pipe (3)

Product Parameters

DN External diameter DE(mm) Wall thickness (mm) T Unit weight Length L
Nominal value Tolerance Nominal value Minimum value kg/pc (mm)
40 48 +2

-1

 3.0 2.5 12.90 3000+/-20
50 58 3.5 3.0 13.00
70 78 3.5 3.0 17.70
70 75 3.5 3.0 17.70
75/80 83 3.5 3.0 18.90
100 110 3.5 3.0 25.20
125 135 +2

-2

 4.0 3.5 35.40
150 160 4.0 3.5 42.20
200 210 +2.5

-2.5

 5.0 4.0 69.30
250 274 5.5 4.5 99.80
300 326 6.0 5.0 129.70

Painting

Internal painting: two-part epoxy resin painting, ochre colour RAL 1021, with an average dry thickness of 120 microns.

External painting: anti-corrosive primer painting, red-brown colour RAL 2001, with average dry thickness 60 microns. or two-part epoxy resin painting,red color RAL2001,with average dry thickness 100 microns.
